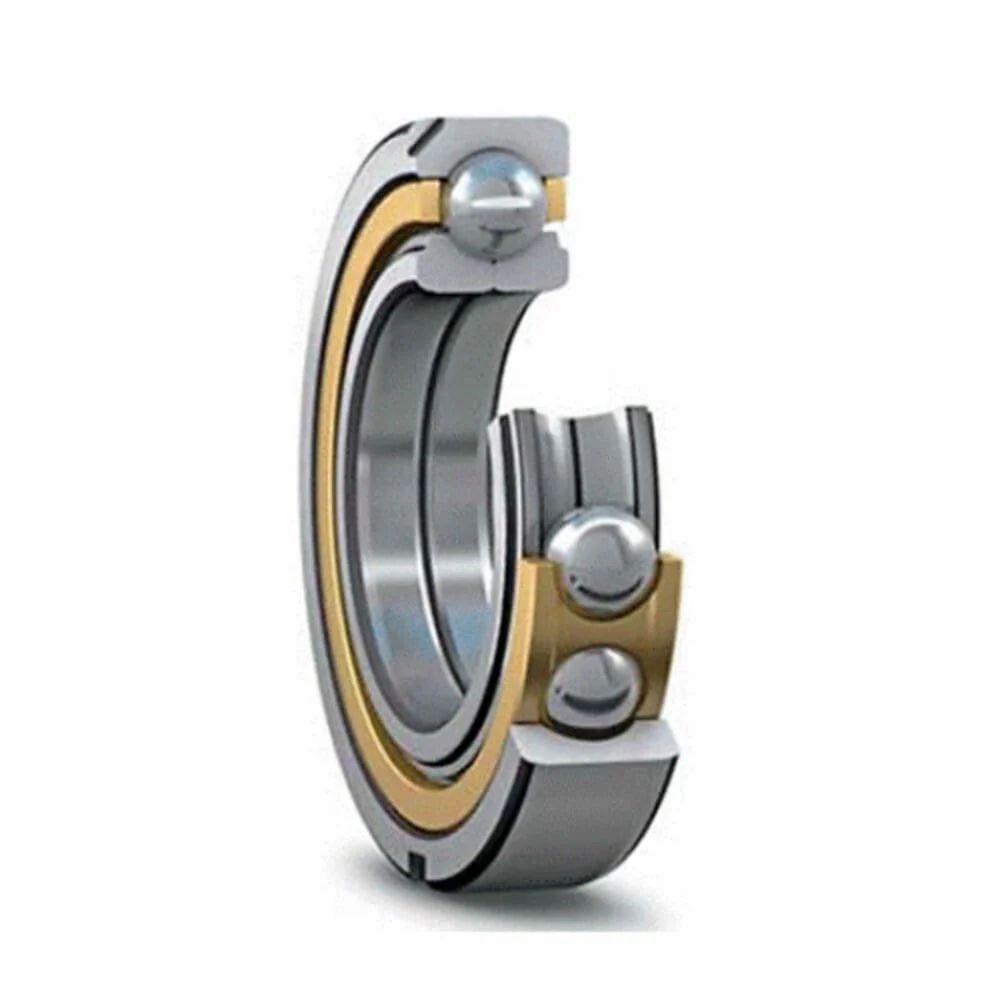

Four-Point Contact Ball Bearings in Industrial Ball Bearings

Phone Number

08042756442

Please keep 0 before dialling the number.

Email Address mahadevent09@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 1005, JANKI HERITAGE, 150 FEET ROAD, NEAR KOTAK MAHINDRA BANK, OPP MAXUS MALL, MIRA BHAYANDER, THANE

Mumbai, India, 401101

Description

Structure Deep Groove Shape Round Bore Size 0 - 8 mm Thickness 7.5 mm Material Stainless Steel Application Machinery, Motor Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support axial loads in both directions. For a given axial load, a limited radial load can also be supported (Load ratio). The bearings are separable, i.e. the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves. Both inner ring halves of SKF Explorer four-point contact ball bearings have a recessed shoulder. This improves oil flow when the bearing is used in combination with an SKF cylindrical roller bearing (fig. 1). In addition, these recesses can be used to facilitate dismounting. Bearing Features: Accommodates axial loads in both directions Less axial space These bearings take up considerably less axial space than double row bearings. High load carrying capacity A large number of balls are incorporated, giving the bearing its high load carrying capacity. Separable design The split inner ring leads to easier mounting and dismounting of the bearing. Improved oil flow Limited inner ring deformation when subjected to high clamping forces
